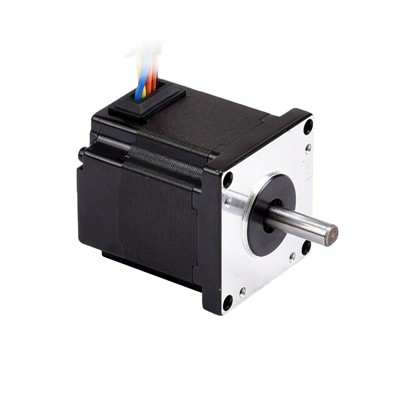

24V 40}00RPM 0.144Nm 60W 3.28A 42x42x70mm Brushless DC Motor
Proizvođač Part Broj: 42BL02402-0060-XXX
Okvir veličina: 42x42mm
Zaštita Razred: IP40
Tijelo duljina: 70mm
Rated Voltage: 24V
Ocijenjeno brzina: 4000 RPM
Ocijenjeno zakretni moment: 0.144Nm
Snaga: 60W
- Brza dostava
- Osiguranje kvalitete
Prilagodba dostupna
Uvod u proizvod
Općenito specifikacija
|
Zaštita ocjena |
IP40 |
|
Ambijent Temperatura |
-20 degree ~55 degree |
|
Skladištenje Temperatura |
-25 degree ~+70 degree |
|
Ambijent Vlaga |
<85% ( without condensation ) |
|
Izolacija klasa |
Klasa B |
|
|
100MΩMin.@500VDC |
Ožičenje
|
|
Olovo boja |
Olovo mjerač |
Funkcija |
Opis |
|
1 |
Crven |
UL1061/24AWG |
Virtualna kreditna kartica |
|
|
2 |
Žut |
Hv |
||
|
3 |
Plav |
Hw |
||
|
4 |
Crn |
GND |
Tlo za dvorana senzori | |
|
5 |
Naranča |
Hu |
||
|
6 |
Plav |
UL1061/20AWG |
w |
|
|
7 |
Naranča |
u |
||
|
8 |
Žut |
v |
Tehnički specifikacija
|
Model NE. |
Ocijenjeno napon |
Brzina |
Ocijenjeno okretni moment |
Moć |
Ocijenjeno Struja |
Bez opterećenja brzina |
Bez opterećenja struja |
Otpor/line-linija |
Inductance/line-line |
Natrag EMF konstanta |
Duljina |
|
VDC |
.rpm |
N.m |
W |
A |
.rpm |
A |
Ω |
Mh |
V/krpm |
Mm |
|
|
42BL02402-0060-XXX |
24 |
4000 |
0.144 |
60 |
3.28 |
5500 |
0.65 |
0.68 |
0.60 | 3.00 |
70 |
Mehaničko Dimenzija
FAQ
A: Brushless DC Motors Motors are being used in in many industries. Some of these industries include Instrumentation, Medical Appliances, Consumer Automotive, Industrial Automation Equipment, Aerospace, Military, 3D printing Industudtry, etc.
Q: Što jesu nedostaci bez četkica DC motor
A: Brushless DC motori are obično more expensive than brushed DC motori due to the complex electronic controls required for work. At the same time, brushless motors require specialized knowledge and equipment for repair and maintenance, them less accessible to the average user.
Q: What are the main components of a BLDC motor?
A: The primary components of a BLDC motor are the rotor (permanent magnet), stator (namot), Hall effect senzori, motor kontroler, power electronics (inverter), and a hlađenje system (toplina sudoper or ventilator). These components work together to enable the the efficient and precise operation of the motor.
